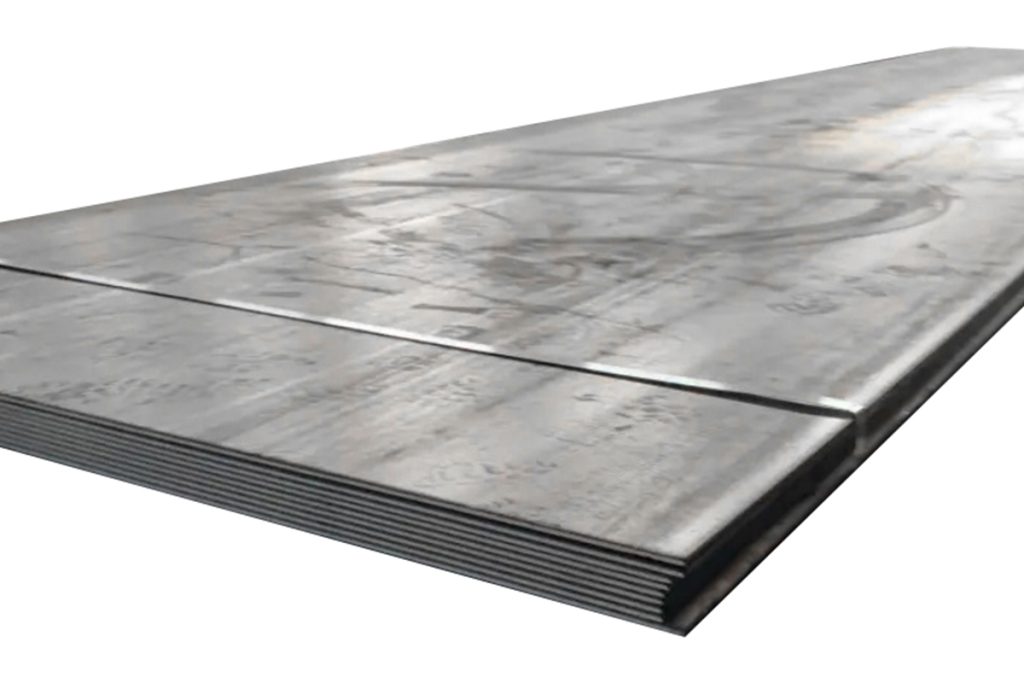

DC01 Cold Rolled Steel Plate
DC01, DC02, DC03, DC04, DC05, DC06 are steel grades of European standard DIN EN 10130, 10209 and DIN 1623, which are specified cold rolled steel. The grades are classified according to the maximum permissible yield strength.
Product Parameters
| Product Name | DC01 Cold Rolled Steel Plate |
| Production Process | Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
| C max. | Mn max. | P max. | S max. |
| 0.08% | 0.40% | 0.03% | 0.03% |
Mechanical Properties
| Steel Grade | Yield Strength (MPa) min | Tensile Strength (MPa) min | Elongation % min | Old Description |
| DC01 | ≤280 | 270-410 | 28 | St 12-03 |
| DC03 | ≤240 | 270-370 | 34 | St 13-03 |
| DC04 | ≤210 | 270-350 | 38 | St 14-03 |
| DC05 | ≤180 | 270-330 | 40 | St 15-03 |
| DC06 | ≤170 | 270-330 | 41 | – |
| DC07 | ≤150 | 250-310 | 44 | – |
Scope of Application
| DC01 | Can be used for simple forming work, for example Bending, embossing, beading and pulling. |
| DC03 | Is suitable for forming requirements like Deep drawing and difficult profiles suitable. |
| DC04 | Is suitable for high deformation requirements. |
| DC05 | Is a thermal forming grade, it is suitable for higher forming requirements. |
| DC06 | Is a grade for special deep drawing, suitable for the higher deformation requirements. |
| DC07 | This superior deep drawing quality is suitable for highest deformation requirements. |
